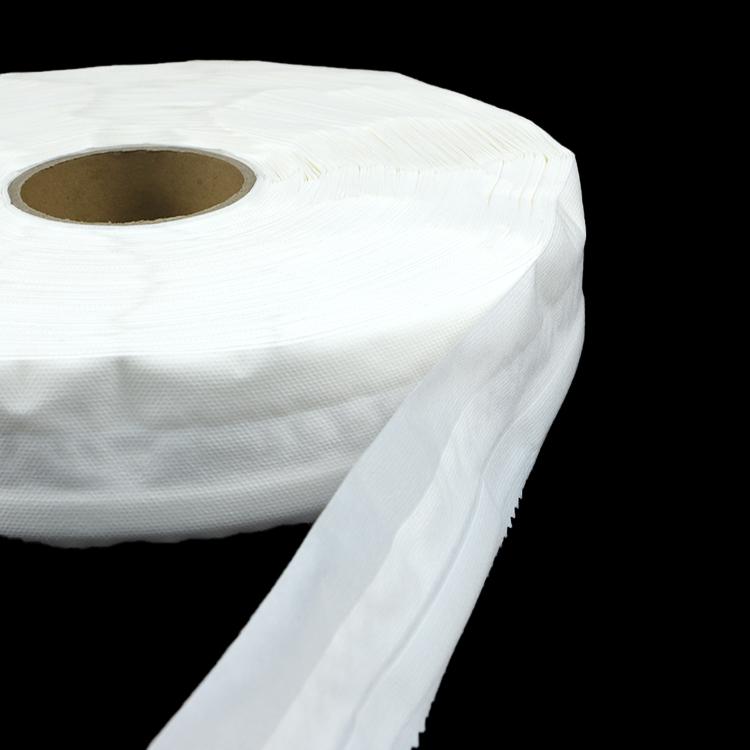

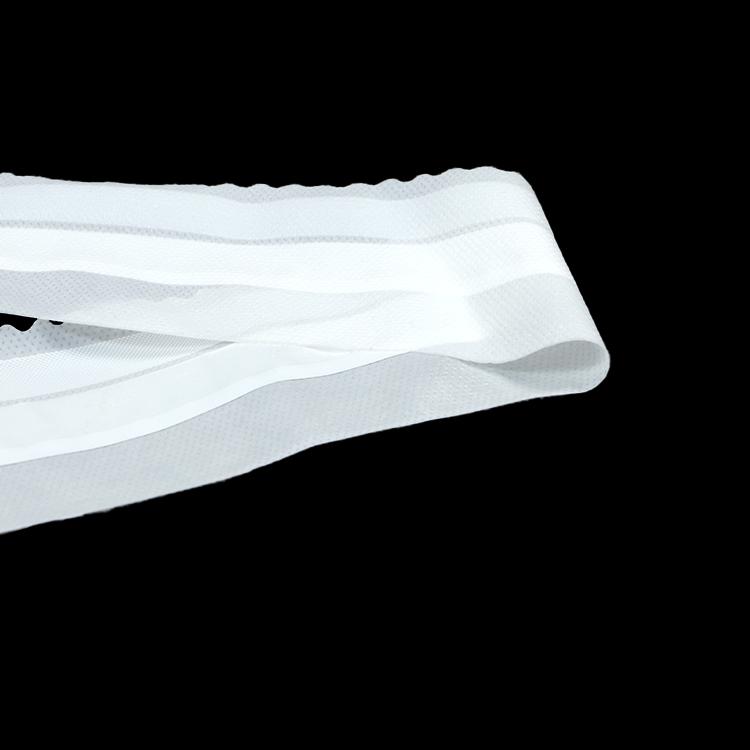

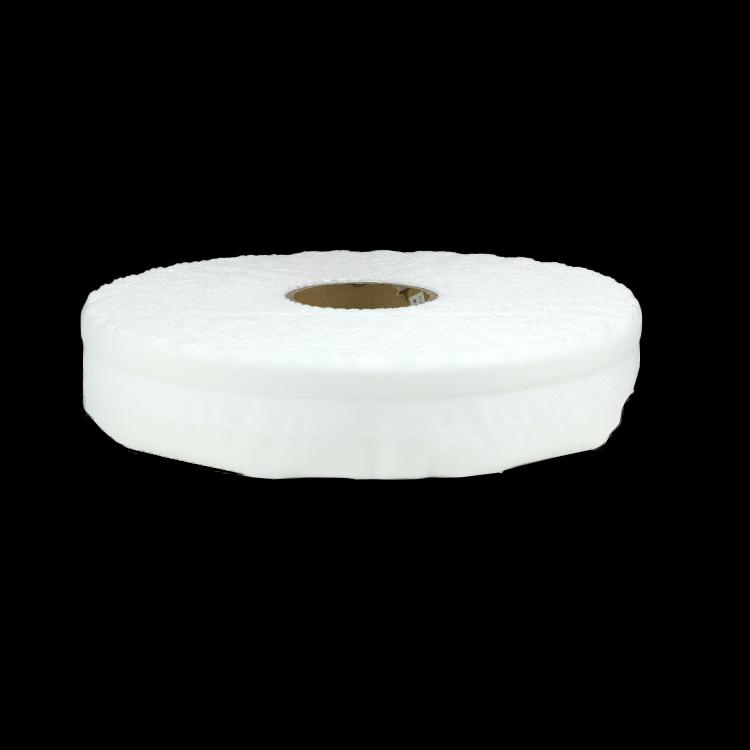

Velcro Side Tape Diapers Making Raw Materials

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Baby diaper, Adult diaper
Minimum order quanity: 4 rolls
Packing details: Carton packing

As a typical absorbent hygiene product, disposable diapers have higher raw materials and manufacturing processes than general cleaning paper. In recent years, the sales of adult incontinence products, which are mainly used to improve the quality of life of the elderly and the disabled, have begun to rise sharply around the world, and the future of the diaper industry is very promising.


Velcro side tape features:

Velcro side tape is used for premium diapers, it is also know as the “hook tape”. There are few choices: PP mechanical hook tape, non-woven mechanical hook tape and elastic mechanical hook tape for your different choosing. 2-layer pressure-sensitive mechanical tape with a pre-combined hook system ensuring a good fastening and repositioning on knitted landing zones.


Product Detail & Custom Options:

Weight: 126-142gsm

Width: 50mm-62mm

Length: 300m/roll

Edge color: white/green/blue

Inner core diameter: 76mm


Items

Unit

Result 1

Result 2

Basic weight

gsm

148

145

Core Inner Diameter

mm

76

76

Width

mm

62

62

Adhesive Force (Backsheet)

N/in

20.52

20.42

Adhesive Force (Side Film)

N/in

25.5

25.65

180º Peel Off

N/13mm

3.99

4.1

90º Peel Off

N/in

4.49

3.94

Permanent Adhesion

Min

223

212.3

Shear Force

N/in

57.51

61.4







Related Resource


Why Choose Juhua Materials Manufacturer In China
Juhua Is Professional Manufacturer Of Velcro Side Tape Diapers Making Raw Materials,
We have strong power to support our production, from factory environment
construction to equipment configuration, all leading to high quality products.
Quality control well
Quality control well
A reputable raw material manufacturer will have stringent quality control measures in place to ensure that their products meet industry standards and perform as expected.
High quality materials
High quality materials
Diaper manufacturers who source their raw materials from top-tier suppliers can offer high-quality diapers that meet the needs of parents and babies.
Continuous supply
Continuous supply
A reliable supplier ensures that there is always a steady supply of raw materials, which avoids delays in production and keeps manufacturing lines running smoothly.
Customization
Customization
We can produce raw materials to meet specific requirements of the diaper manufacturer, such as different absorbency levels or special designs.
Non-Woven Fabric Manufacturing
01
Fiber/Raw
Material
Preparation
02
Laying
03
Bonding
04
Finishing
Fiber/Raw Material Preparation
Juhua's choice of raw materials is based on processability and the ultimate performance requirements of the fibre web. Fiber is the basis for all nonwoven materials. Most natural and chemical fibers can be used in nonwoven materials. In addition, we also use high-quality adhesives and finishing chemicals, which can bond the fibers in the web to each other to obtain a web with a certain strength and integrity.
Laying
The process of forming fibres into a loose fibrous web is called laying. The reduced web strength at this time is very low, and the fibers in the web may be staple fibers or continuous filaments, depending mainly on the process of forming the web. Juhua's laying process mainly consists of dry laying, wet laying, and spin laying.
Bonding
After the fiber web is formed, the reinforcement of the loose fibers held by the fiber web by the related process is called bonding, which gives the fiber web certain physical and mechanical properties and appearance. Juhua's bonding process includes mechanical, thermal, chemical, stitch bonding, etc.
Finishing
Finishing is carried out after the bonding. Finishing is designed to improve the structure and feel of the product, and sometimes to change the properties of the product, such as breathability, absorbency and protection. Finishing methods at Juhua can be divided into two categories: mechanical methods and chemical methods. Mechanical post-treatment includes creping, calendering, shrinking, perforating, and the like. Chemical finishing includes dyeing, printing and functional finishing.
Backsheets Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.

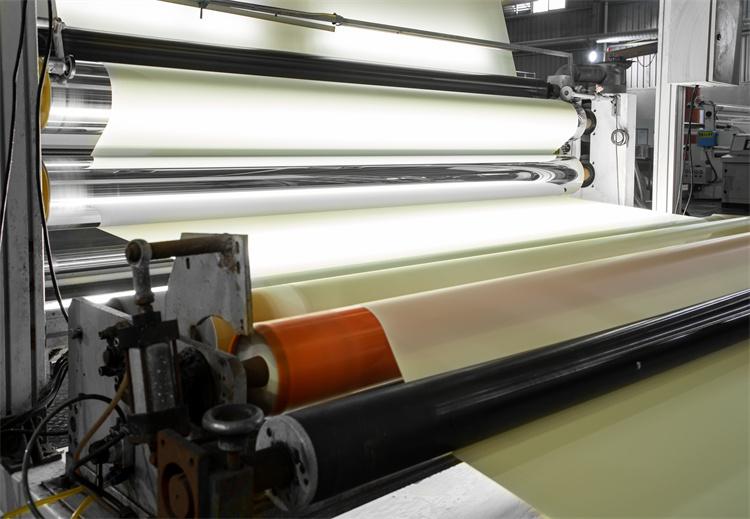

Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.
Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
