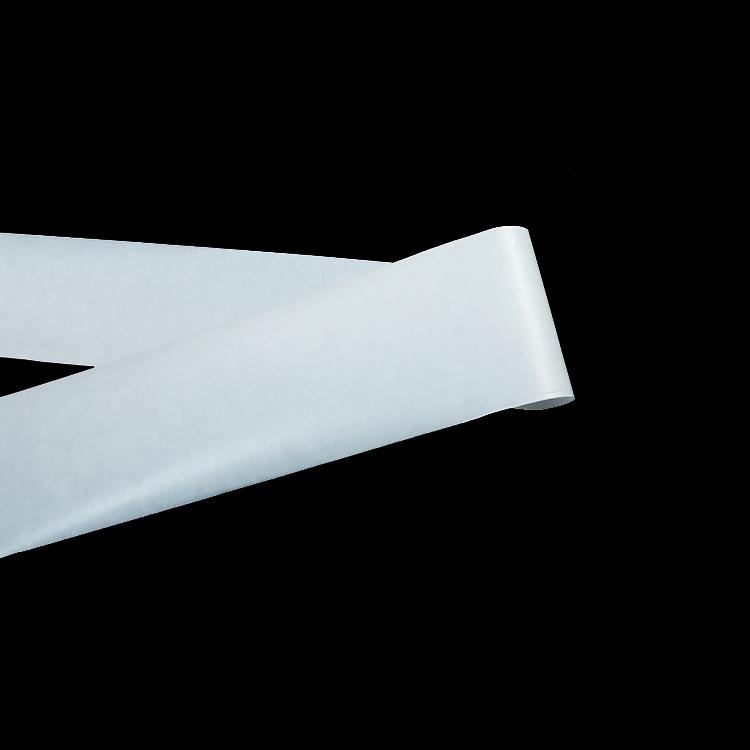

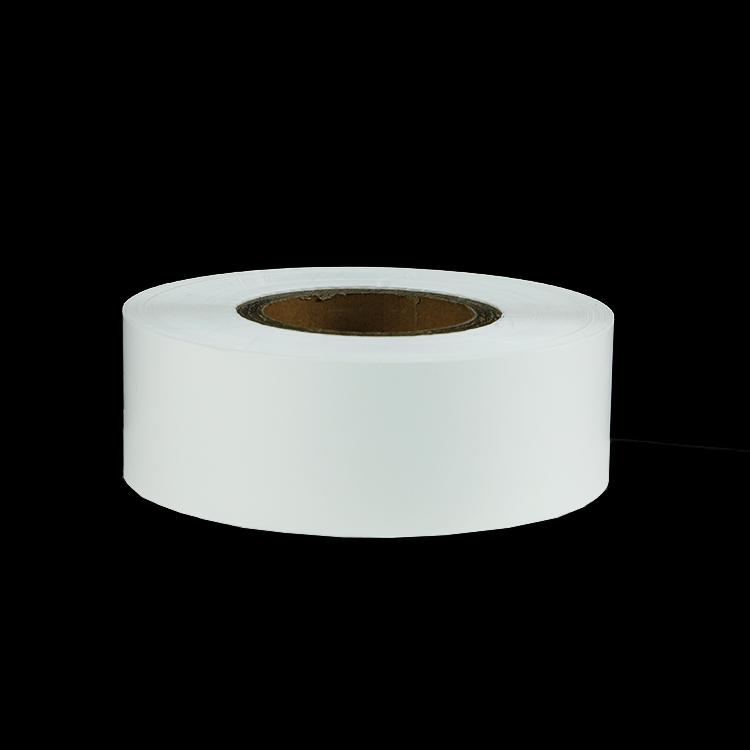

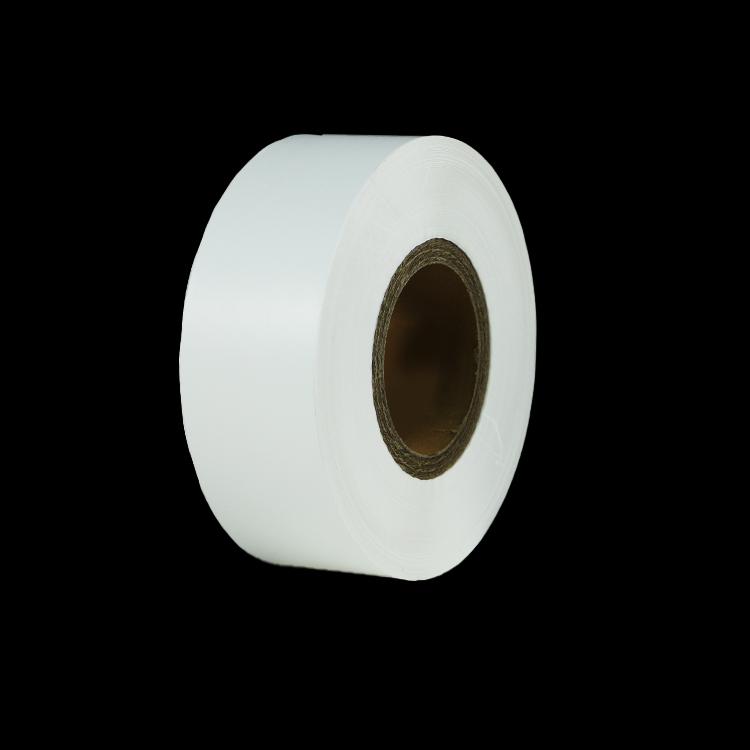

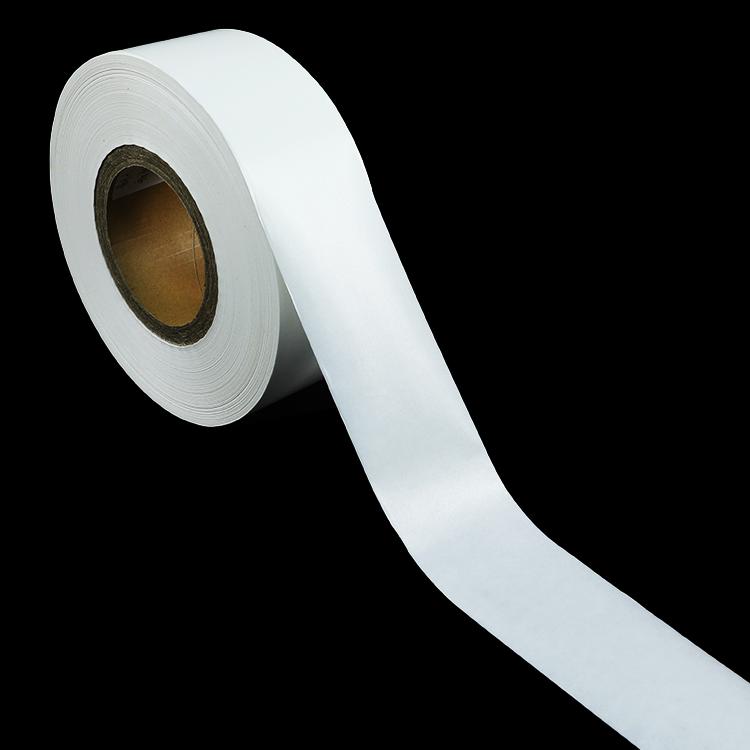

This silicone coated release paper is a dedicated raw material for sanitary pad and panty liner production. It provides a reliable release surface for adhesive components, supporting efficient converting and assembly processes in hygiene product manufacturing.

Silicone Coated Release Paper for Sanitary Pad Material: Key Features

This release liner is engineered for consistent performance in high-speed converting lines. Its balanced construction helps ensure smooth unwinding, precise adhesive transfer, and clean release, which are critical for maintaining production efficiency and final product integrity.

• Main Material: Wood pulp, silicone oil
• Basic Weight: 42 gsm
• Width Range: 25 mm - 960 mm
• Printing: Up to 2 colors
• Inner Core Diameter: 76 mm
• Outer Diameter: 460 mm
• Loading Quantity: 15 tons / 20GP
• Application: Sanitary pad material, panty liner, and similar hygiene products

Material Buying Guide

This silicone coated release paper is a critical component in the production of disposable hygiene products, primarily serving as a protective liner for adhesive zones on sanitary pads and panty liners. Its primary function is to protect the adhesive before use and to release cleanly and easily when the product is applied, ensuring a secure fit without damaging the product's structure.

For purchasing and R&D teams, this material offers a balance of key performance attributes. The 42 gsm basis weight provides dimensional stability and sufficient stiffness for efficient handling on converting lines, while the silicone coating delivers the controlled release characteristics necessary for high-speed processing. The available width range of 25 mm to 960 mm offers flexibility for various production setups and product sizes.

Key verified specifications include:

• Basis Weight: 42 g/m² (±2 g/m²)
• Whiteness: 80-85%
• Moisture: 8% ± 2%
• Breaking Tension: ≥ 45 N/25.4mm
• Peeling Strength: 0.08 - 0.25 N/25mm

Functional Benefits: The material is designed to offer a smooth, consistent surface for reliable adhesive coverage and release. Its visual properties—including color and cleanliness—are controlled to meet the aesthetic requirements of hygiene products. The roll dimensions and core size are standardized to fit common converting machinery.

Sampling and Packing: For evaluation purposes, samples can be arranged to assess the material's performance on your specific production line. Standard packing is in rolls, with a typical loading quantity of 15 tons per 20GP container.

Frequently Asked Questions:

• Q: What is the primary application of this release paper?
  A: It is specifically designed as a release liner for adhesive components in sanitary pads and panty liners.
• Q: Can the width be customized?
  A: Yes, the material is available in a range from 25 mm to 960 mm to accommodate different production requirements.
• Q: What is the typical lead time for a sample?
  A: Please contact our sales team to discuss sample availability and lead times for your specific requirements.

Request a Quote: To discuss your specific requirements, request samples, or obtain detailed specifications, please contact our sales team.

Application and Compatibility

This silicone coated release paper is positioned as a high-performance liner for the hygiene industry. It is specifically designed to be compatible with the adhesive systems and high-speed processes used in the manufacture of sanitary pads and panty liners.

Material Position in Production: It is typically used as the bottom protective layer, covering the adhesive that secures the product to underwear. It can also be used as a release liner for individual adhesive strips or wings.

Compatible Substrates and Process Steps: The material is designed to work with standard hot-melt adhesive application systems. Its controlled release properties ensure that the liner can be cleanly removed from the adhesive without leaving residue or causing tearing. It is suitable for use in rotary and intermittent converting processes.

Production-Line Considerations: The 76 mm inner core diameter is a standard size for most converting lines, ensuring easy mounting. The roll's outer diameter of 460 mm allows for extended production runs, reducing downtime for roll changes. The material's tensile strength is designed to withstand the tension of high-speed unwinding and lamination processes.

Quality Checkpoints: Incoming quality control should verify the roll dimensions, basis weight, and visual appearance. During production, monitor the release force to ensure it remains within the specified range of 0.08-0.25 N/25mm for consistent performance.

Specifications: For detailed physical properties, please refer to the Technical Specifications section. Final configuration and suitability for your specific process should be confirmed through material trials.

Inquire About Compatibility: Contact us to discuss how this material can be integrated into your existing production line or to request samples for compatibility testing.

Quality Evidence

WEIHONGLAI ensures the quality and consistency of this silicone coated release paper through rigorous lot testing. The following data represents typical production averages and serves as a benchmark for incoming inspection and quality assurance.

Buyer Requirement: The material is supplied to meet the specifications for use as a release liner in hygiene products, with a focus on consistent release, dimensional stability, and visual cleanliness.

Supplied Specification and Inspection Evidence: Each production lot is tested for key parameters including basis weight, whiteness, moisture, breaking tension, peeling strength, and visual defects. The results are recorded and available upon request.

Traceability and Storage: Each roll is marked for traceability. To maintain performance, store the material in a cool, dry environment, away from direct sunlight and moisture.

Sample or Trial Guidance: We recommend conducting a production trial to validate the material's performance with your specific adhesives and machinery. Our team can provide guidance and support during the trial process.

Potential Risks and Mitigation: As with all raw materials, variations in environmental conditions (humidity, temperature) can affect performance. Our specifications are designed to minimize these risks, and we recommend adhering to standard storage practices.

FAQ:

• Q: What is the basis weight tolerance?
  A: The basis weight is controlled to 42 ± 2 g/m².
• Q: What is the typical peeling strength?
  A: The peeling strength is maintained between 0.08 and 0.25 N/25mm to ensure clean release.
• Q: How is the material packed for shipment?
  A: The material is supplied in rolls, with a standard loading quantity of 15 tons per 20GP container.

Request Documentation: For detailed quality reports or to discuss your quality requirements, please contact our quality assurance team.
