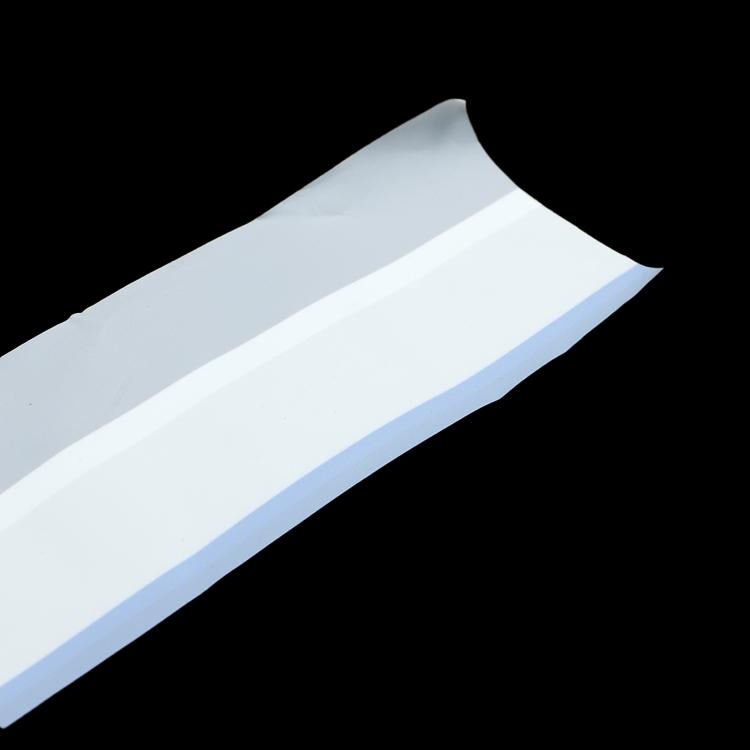

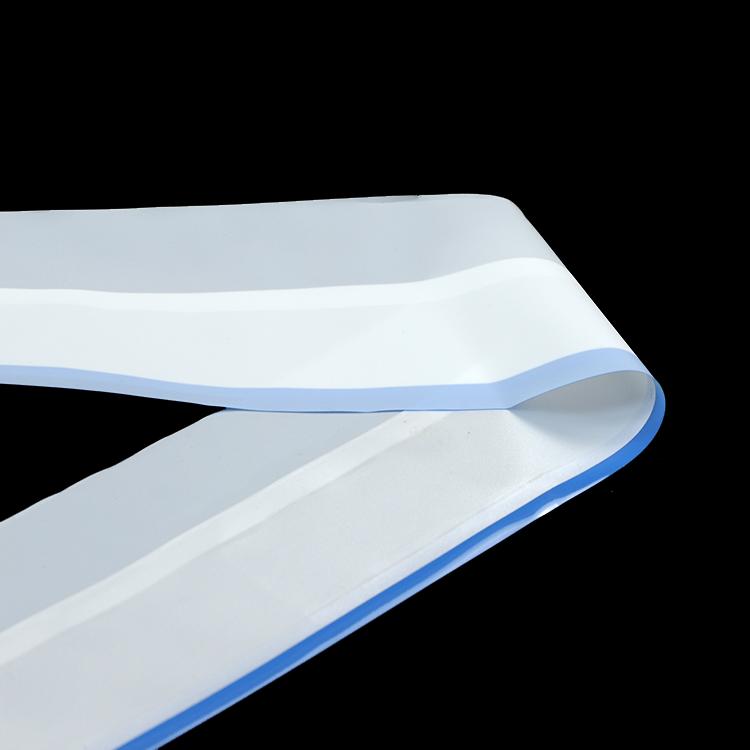

PP Side Tape for Diaper Manufacturing

WEIHONGLAI supplies PP side tape as a key component for infant and adult diaper production. Manufactured through precise backing finishing and computer-controlled coating technology, this closure system component is engineered for reliable fastening and consistent performance on high-speed production lines.

Product Details & Custom Options

• Material: PP/PET
• Basic Weight: 125/133/143 gsm, customized options available
• Width: 55/60/62 mm
• Length: 600 m/roll
• Edge: Available in white, green, or blue
• Inner Core Diameter: 76 mm
• Outer Diameter: 450 mm
• 180° Peel Off: ≥ 11 N/25mm
• 180° Peel Off from PE: ≥ 8 N/25mm
• Tensile Strength: ≥ 40 N/25mm
• Application: Baby diaper, adult diaper

Quality & Test Evidence

Each production batch is subject to standardized peel and release testing to confirm consistent adhesion and reliable performance. The table below summarizes representative test results for fastening and release characteristics.

Production & Supply Considerations

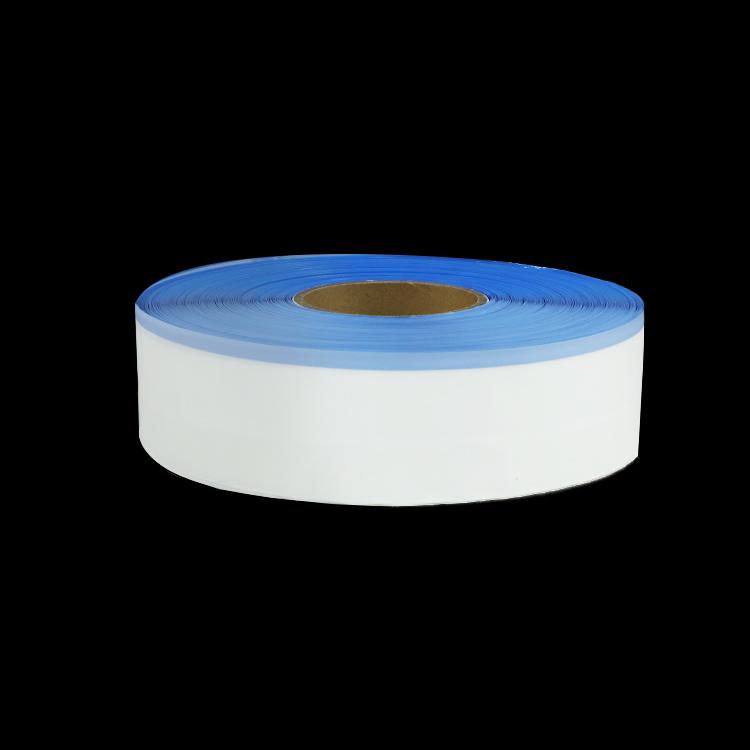

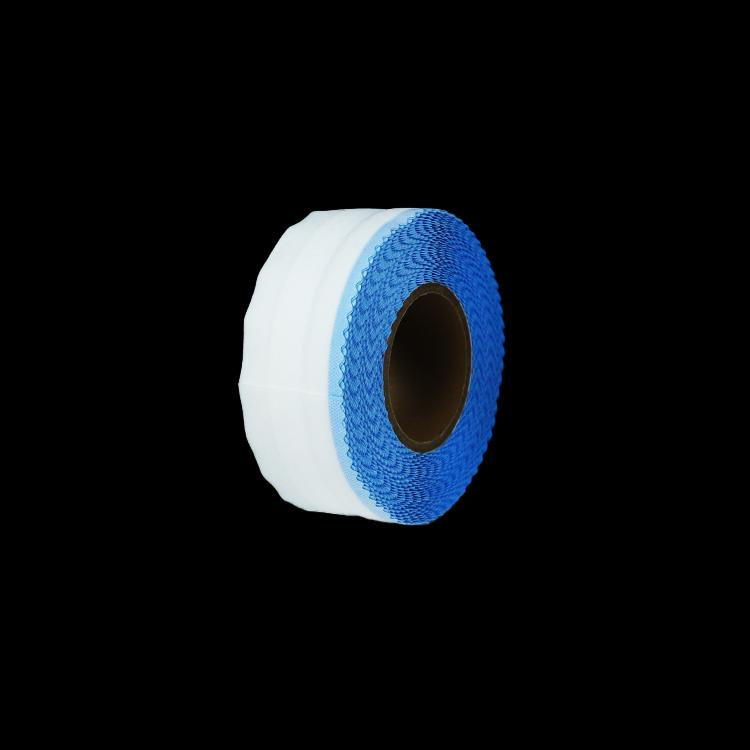

PP side tape is supplied in roll form with a 76 mm inner core and 450 mm outer diameter, designed for straightforward handling and splicing on diaper converting lines. Standard widths of 55, 60, and 62 mm support common closure system layouts, while custom widths and colors can be discussed based on your line configuration. For a broader view of available closure system components, you can review our Non Woven Fabrics catalog.

Request a Quote or Sample

Contact WEIHONGLAI to confirm specifications, request samples, or discuss custom options for your diaper production line. Our team can provide further technical documentation and support for material qualification.
