Name: PE Film for Baby Diaper Backsheet Production Materials
Brand: JUHUA

YOUR POSITION：HOME > Products > Backsheets >

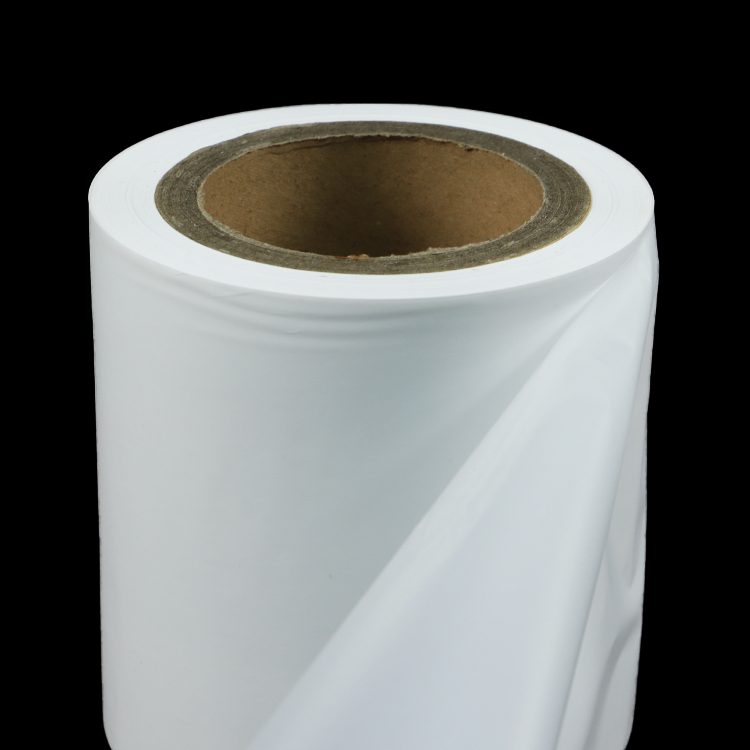

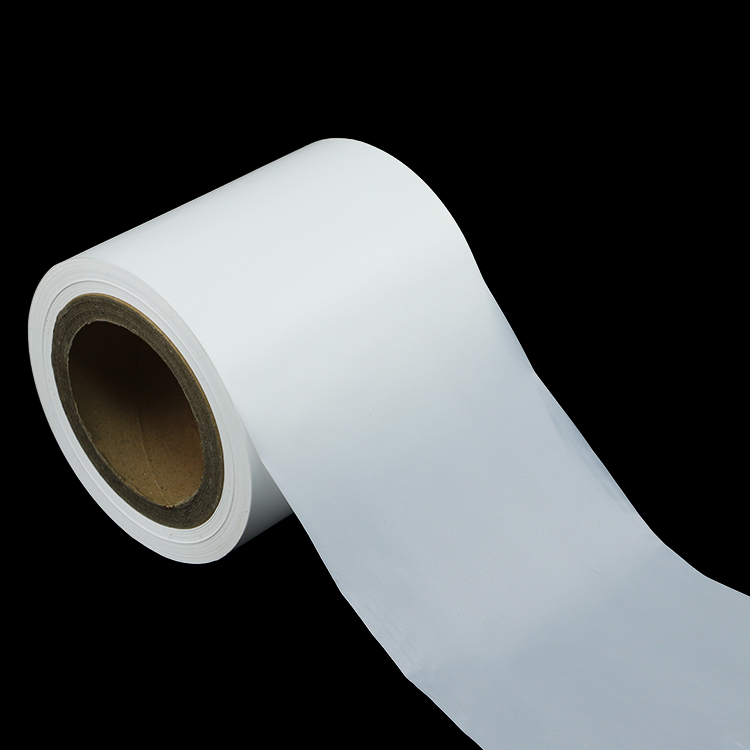

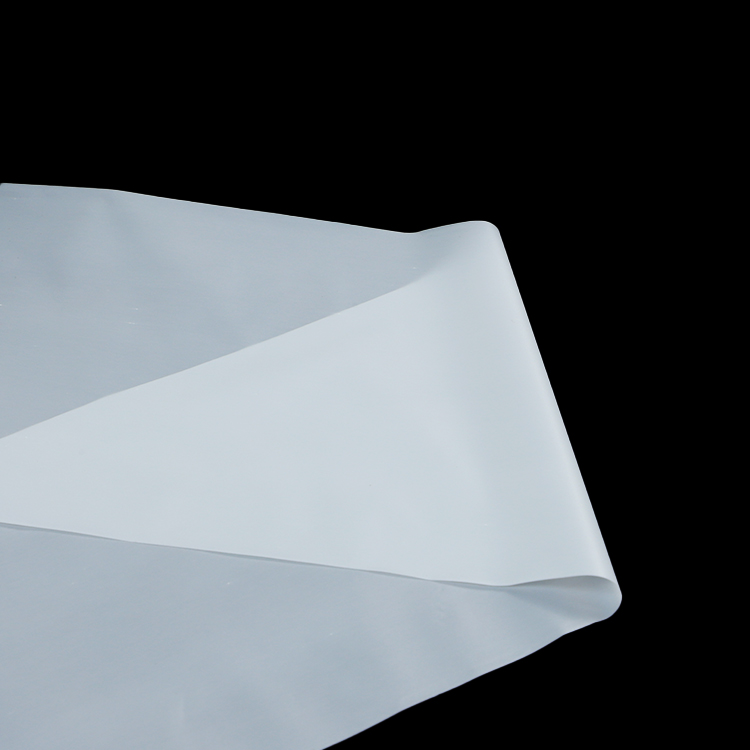

PE Film for Baby Diaper Backsheet Production Materials

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Baby diaper, Adult diaper, Sanitary napkin
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

Quote
+86-13599104026

Product Description

PE wrapping film features:

Composition: Polyethylene

Basic Weight: 15-35gsm

Width: 50mm-2300mm

Colors: White color

Loading quantity:20-23 tons/20GP.

Test	Item	Technical Requirement
Appreance	Width(mm)	180mm
	(Outside Roll Diameter)mm/Length(m)	Φ450mm/5000m
	(Core Inside Diameter)mm	76mm
The Test Items		First	Second	Third	Average
Tensile Strenght	CM Tensile（N）	11.2	11.2	11.1	11.166
Tensile Strenght	MD Tensile（N）	16.2	16.1	16.4	16.233
Break Elongation rate (%)	CM Tensile(%)	400.3	401.45	398.71	400.153
Break Elongation rate (%)	MD Tensile（%）	399.18	400.42	397.42	399.005

Products Categories

Related Products

More》

PE film PE film price Baby diaper backsheet

Previous： PE Wrapping Film Back Sheet Film Raw Material For Sanitary Pad Material
Next：Clothlike Film for Diaper Making Materials

PE Film for Baby Diaper Backsheet Production Materials
Related Quality Control

Moisture Detection

The moisture of each batch of incoming materials will be tested with a METTLER HS153 moisture analyzer to control the moisture content at ≤0.1%.

Excellent QC Talents Work with Us

JUHUA is equipped with a professional quality inspection team for the inspection of production of disposable hygiene product raw materials. All quality inspectors have to have had more than 3 years experience.

Width Measurement

In the production process, the PE Film for Baby Diaper Backsheet Production Materials which is off the slitting machine will be width tested with a tape measure, and width error range should be controled in ≤ 2 mm.

Printing Detection

The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.

PE Film for Baby Diaper Backsheet Production Materials Manufacturing

Prilling

Film

Formation

Printing

Slitting

Prilling

The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.

Film Formation

There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.

Printing

Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.

Slitting

Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
