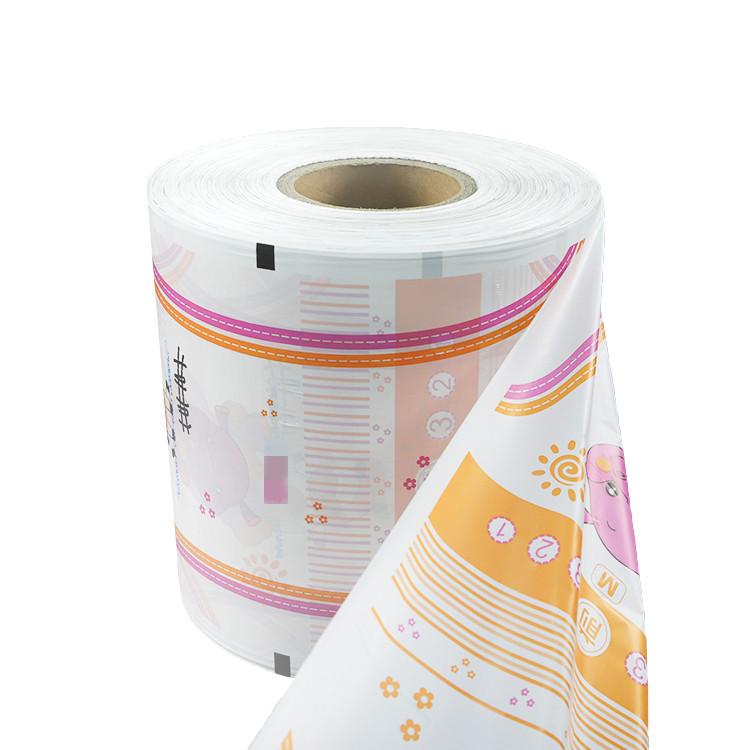

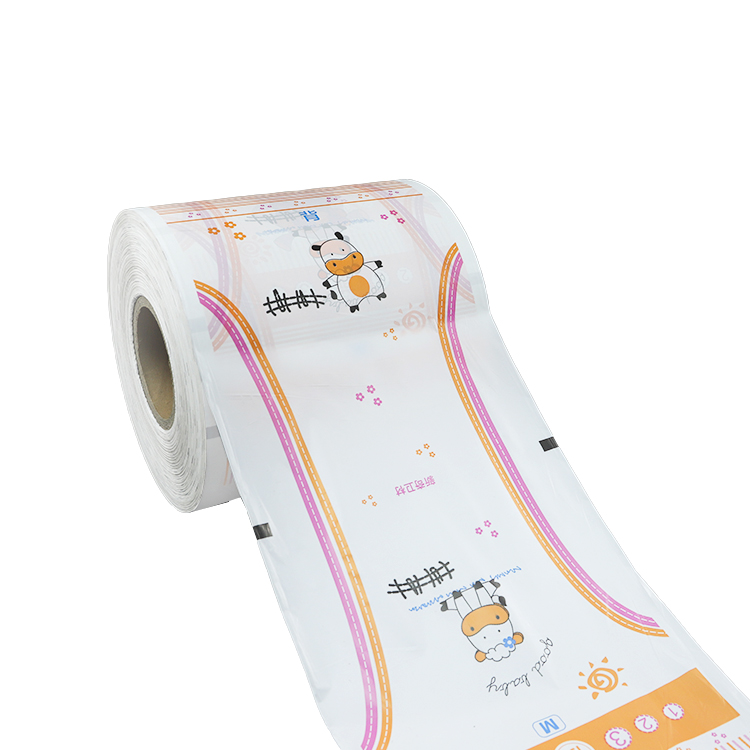

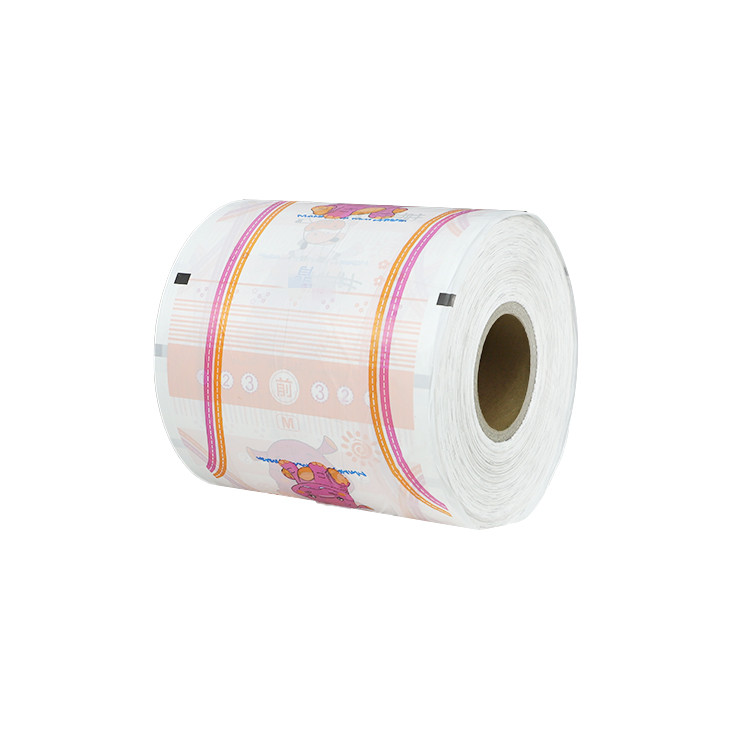

Breathable Film for Diaper Production Materials

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Baby diaper
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

Breathable film features:

1.Excellent breathability High elongation Extra soft Safe for sensitive skin

2.Free from chemical agents

3.Micro porous , these composite structures enable water vapor molecules and air to pass through, yet it restricts liquid flow, to avoid your baby’s red buttocks.

4.Composition: Polyethylene CaCo3

5.Basic Weight: 15-35gsm

6.Width: 200-380mm

7.Colors: Printing Up to 6 colors

8.Loading quantity:20-23 tons/20GP.

Properey

 Grammage  (g/m2)


Tensile strength MD(N/25mm)


MD Elongation(%)


Tensile strength CD(N/25mm)

    CD Elongation(%)


WVT
g/24h/m²

  Sample Size

100cm2

2.5cm*20cm

2.5cm*20cm

2.5cm*20cm

2.5cm*20cm

8cm*8cm

 Sample Number

5

5

5

5

5

4

     Target

20.0

5

100

2

200

1600-3200

     Average

20.4

8.1

240.0

2.7

471.0

2127

      Method

ASTM D 3776

ASTM D 5035-95

ASTM D 5035-95

\

Related Resource


Breathable Film for Diaper Production Materials Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.
Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.
Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
Why Choose Juhua Materials Manufacturer In China
Juhua Is Professional Manufacturer Of Breathable Film for Diaper Production Materials,
We have strong power to support our production, from factory environment
construction to equipment configuration, all leading to high quality products.
Consistency
By using the same raw materials for each batch of diapers, Breathable Film for Diaper Production Materials manufacturer can ensure consistency in product quality and performance.
Consistency
High quality& Good Service
Dedicated to strict quality control and clients service, our experienced staff members are always available to discuss your requirements and ensure full clients satisfaction.
High quality& Good Service
Partnership
A strong partnership between a diaper manufacturer and raw material supplier can result in mutual success, with both parties benefiting from shared business goals and values.
Partnership
Breathable Film for Diaper Production Materials
Related Quality Control
Printing Detection
Printing Detection
The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.
Moisture Detection
Moisture Detection
The moisture of each batch of incoming materials will be tested with a METTLER HS153 moisture analyzer to control the moisture content at ≤0.1%.
Breathability Test
Breathability Test
The breathability of the each Backsheet in the production will be tested by a constant temperature and humidity chamber, and the airflow control error is ±500.
Excellent QC Talents Work with Us
Excellent QC Talents Work with Us
JUHUA is equipped with a professional quality inspection team for the inspection of production of disposable hygiene product raw materials. All quality inspectors have to have had more than 3 years experience.
Our Certifications
Disposable Non woven Fabric SGS Testing Report
SSS Non woven Fabric SGS Testing Report
PP Non woven SGS Testing Report
Non woven Polypropylene SGS Testing Report
Non woven Fabric Roll SGS Testing Report
Non woven Fabric SGS Testing Report
ISO ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE OF NON WOVEN FABRIC PRODUCTION
ISO QUALITY MANAGEMENT SYSTEM CERTIFICATE OF NON WOVEN FABRIC PRODUCTION
ISO OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM CERTIFICATE OF NON WOVEN FABRIC PRODUCTION
Related Knowledge
We offer you disposable hygiene product
raw materials with premium quality.
