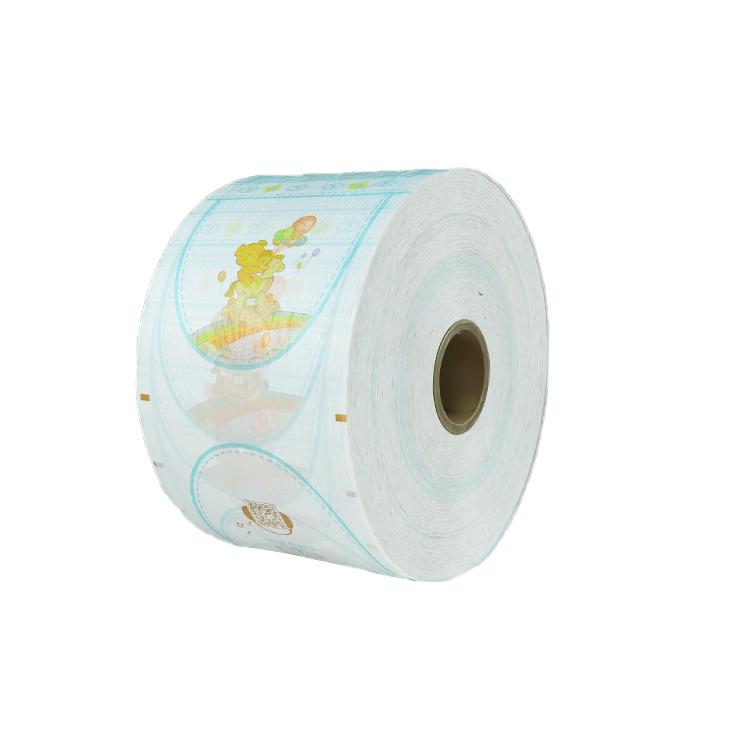

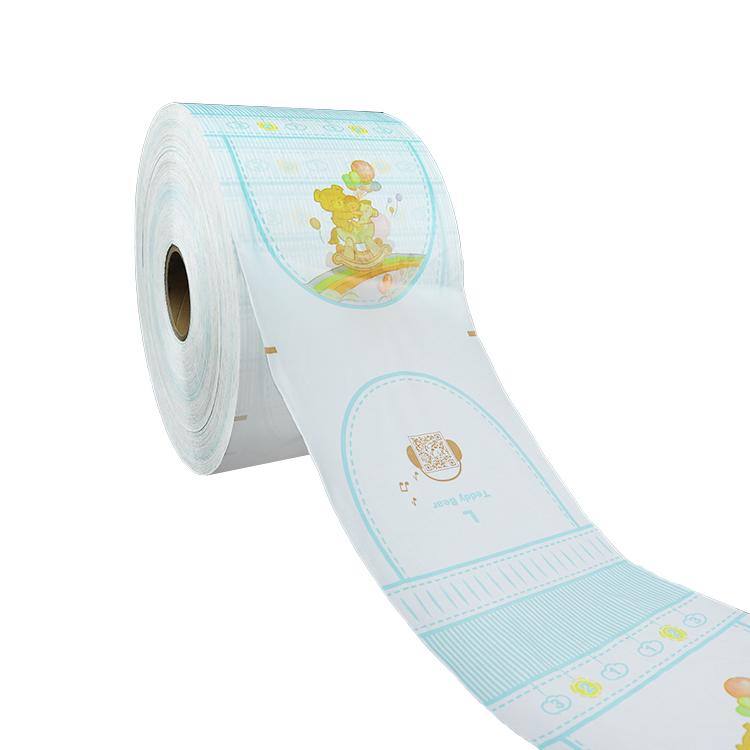

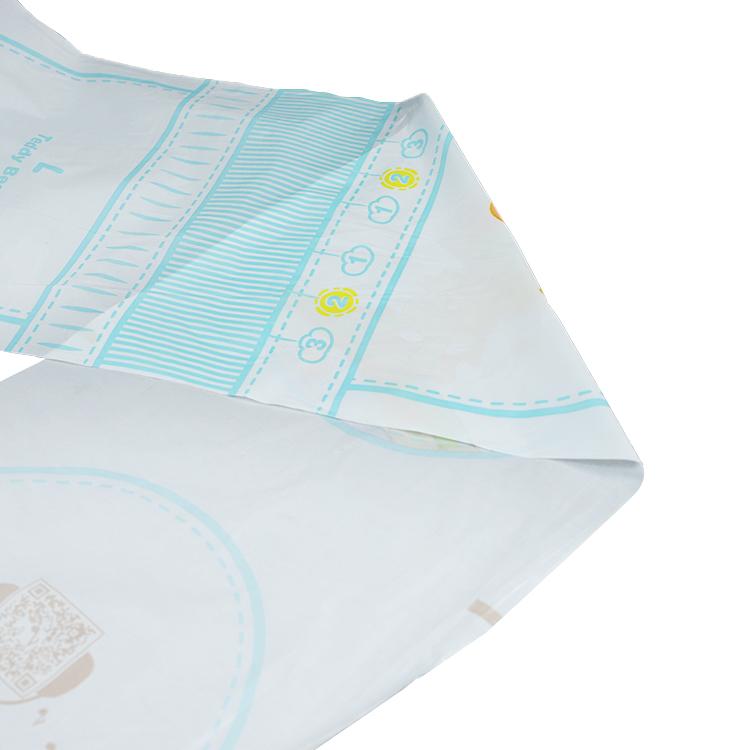

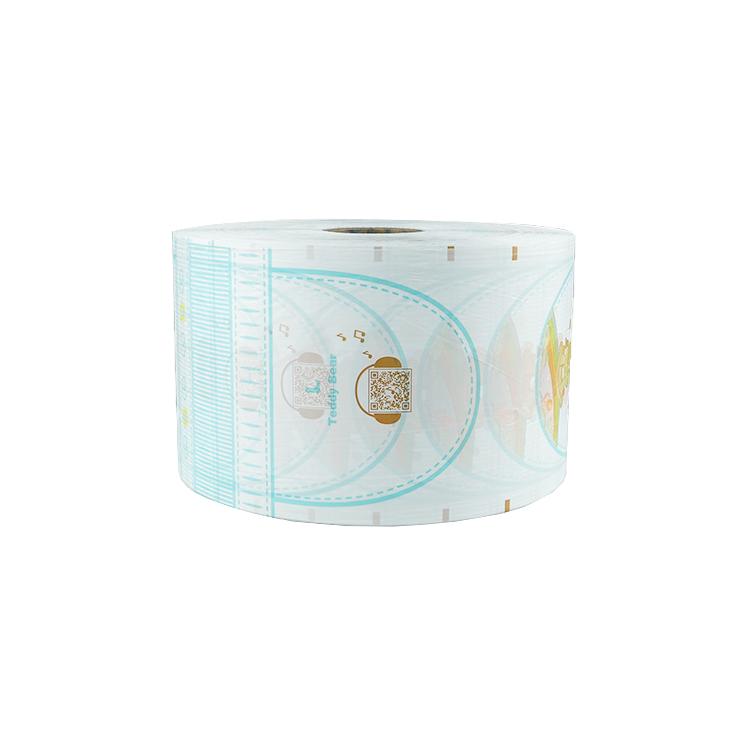

Colorful Breathable PE film Backsheet for Baby Diaper Production Materials

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Baby diaper, Adult diaper, Sanitary napkin
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

Colorful breathable PE film features:

1.Excellent breathability High elongation Extra soft Safe for sensitive skin

2.Free from chemical agents

3.Micro porous , these composite structures enable water vapor molecules and air to pass through, yet it restricts liquid flow, to avoid your baby’s red buttocks.

4.Composition: Polyethylene CaCo3

5.Basic Weight: 15-35gsm

6.Width: 50mm-2300mm

7.Colors: Printing Up to 6 colors

8.Loading quantity:20-23 tons/20GP.


Properey

 Grammage  (g/m2)


Tensile strength MD(N/25mm)


MD Elongation(%)


Tensile strength CD(N/25mm)

    CD Elongation(%)


WVT
g/24h/m²

  Sample Size

100cm2

2.5cm*20cm

2.5cm*20cm

2.5cm*20cm

2.5cm*20cm

8cm*8cm

 Sample Number

5

5

5

5

5

4

     Target

20.0

5

100

2

200

1600-3200

     Average

20.4

8.1

240.0

2.7

471.0

2127

      Method

ASTM D 3776

ASTM D 5035-95

ASTM D 5035-95

\


Related Resource


Colorful Breathable PE film Backsheet for Baby Diaper Production Materials Manufacturing
01
Prilling
02
Film
Formation
03
Printing
04
Slitting
Prilling
The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.
Film Formation
There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.
Printing
Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.
Slitting
Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.
Why Choose Juhua Materials Manufacturer In China
Juhua Is Professional Manufacturer Of Colorful Breathable PE film Backsheet for Baby Diaper Production Materials,
We have strong power to support our production, from factory environment
construction to equipment configuration, all leading to high quality products.
Mix loading
We will help clients to calculate the Colorful Breathable PE film Backsheet for Baby Diaper Production Materials quantity monthly, mixing all items with full loading, save cost and save time.
Mix loading
Win-Win benefit
We provide our clients with cost-effective quality Colorful Breathable PE film Backsheet for Baby Diaper Production Materials, to improve the competitiveness of our clients products in the market, reduce the losses caused by raw materials and obtain more benefits.
Win-Win benefit
Research & Development
We are often at the forefront of research and development, providing new materials that can improve diaper performance or reduce environmental impact.
Research & Development
Colorful Breathable PE film Backsheet for Baby Diaper Production Materials
Related Quality Control
Tensile Test
Tensile Test
The tension tester is used to test the tensile strength of the products, to control the tension is ≥2N in the lateral direction and ≥5N in the longitudinal direction.
Gram Weight Detection
Gram Weight Detection
The weight of the Backsheet of each roller will be measured by a precision electronic balance, and the weight error will be controlled at ±1.5g.
Width Measurement
Width Measurement
In the production process, the Colorful Breathable PE film Backsheet for Baby Diaper Production Materials which is off the slitting machine will be width tested with a tape measure, and width error range should be controled in ≤ 2 mm.
We Formulate a Strict QC Institution
We Formulate a Strict QC Institution
We create a quality environment for the Colorful Breathable PE film Backsheet for Baby Diaper Production Materials. A better environment leads to systematic production of premium quality . In addition, we have set up a special laboratory for quality inspection.
Our Certifications
Disposable Non woven Fabric SGS Testing Report
SSS Non woven Fabric SGS Testing Report
PP Non woven SGS Testing Report
Non woven Polypropylene SGS Testing Report
Non woven Fabric Roll SGS Testing Report
Non woven Fabric SGS Testing Report
ISO ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE OF NON WOVEN FABRIC PRODUCTION
ISO QUALITY MANAGEMENT SYSTEM CERTIFICATE OF NON WOVEN FABRIC PRODUCTION
ISO OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM CERTIFICATE OF NON WOVEN FABRIC PRODUCTION
