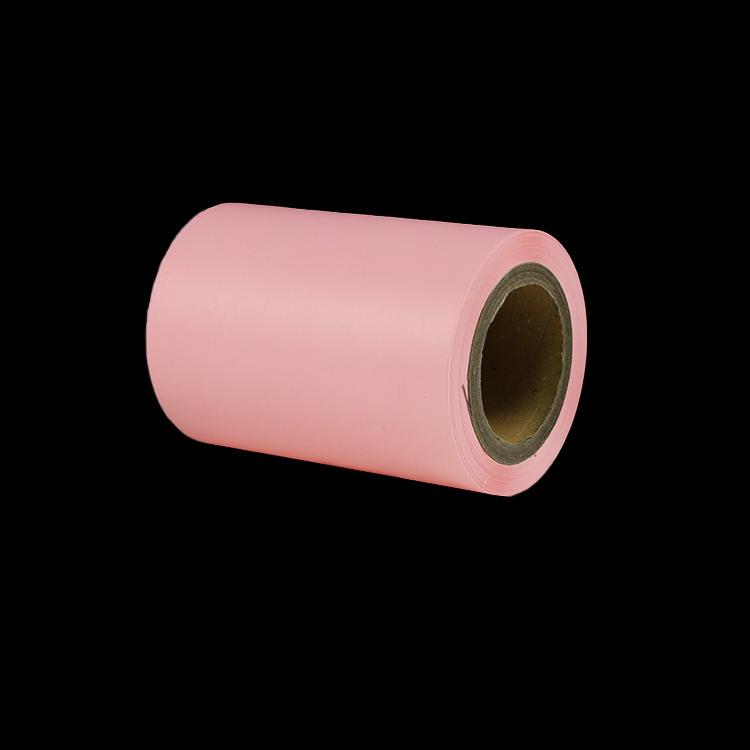

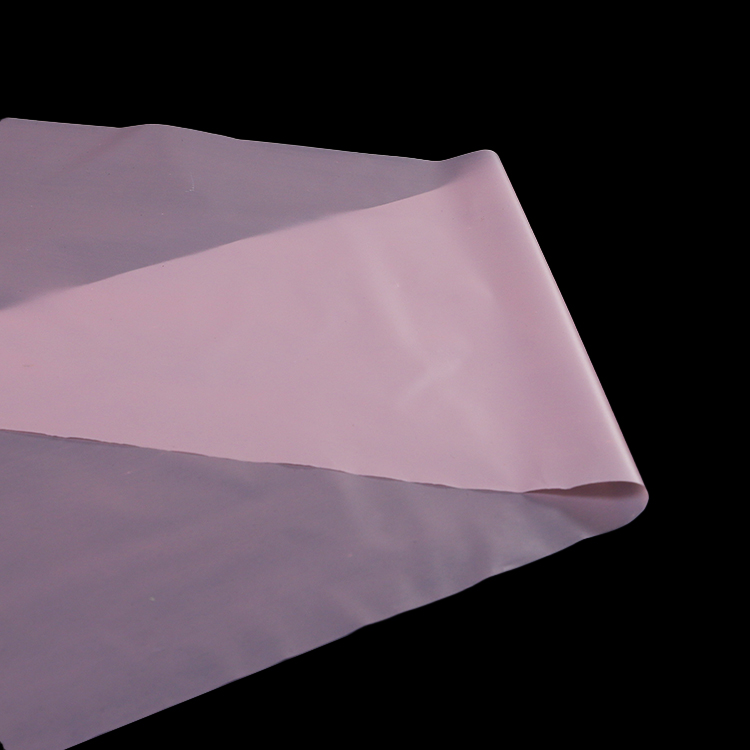

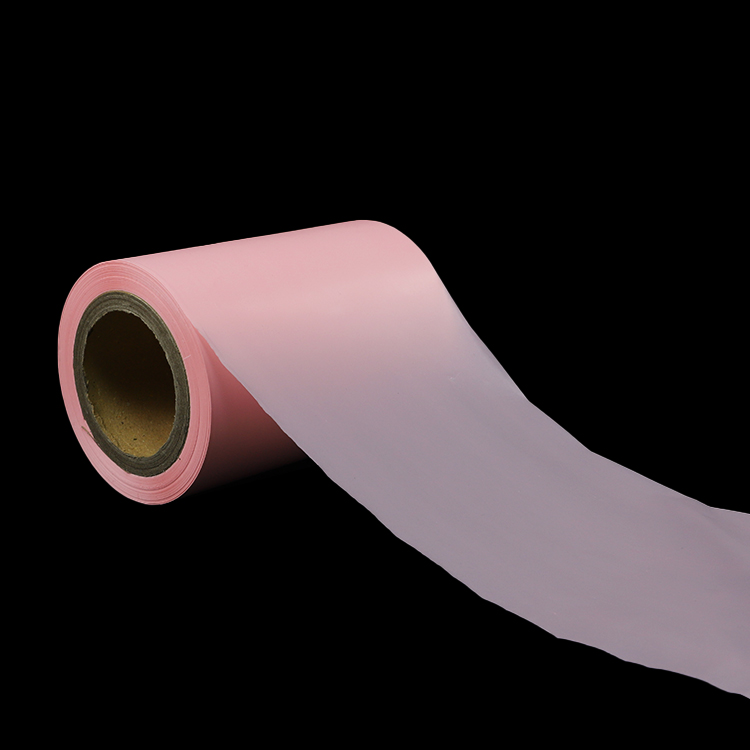

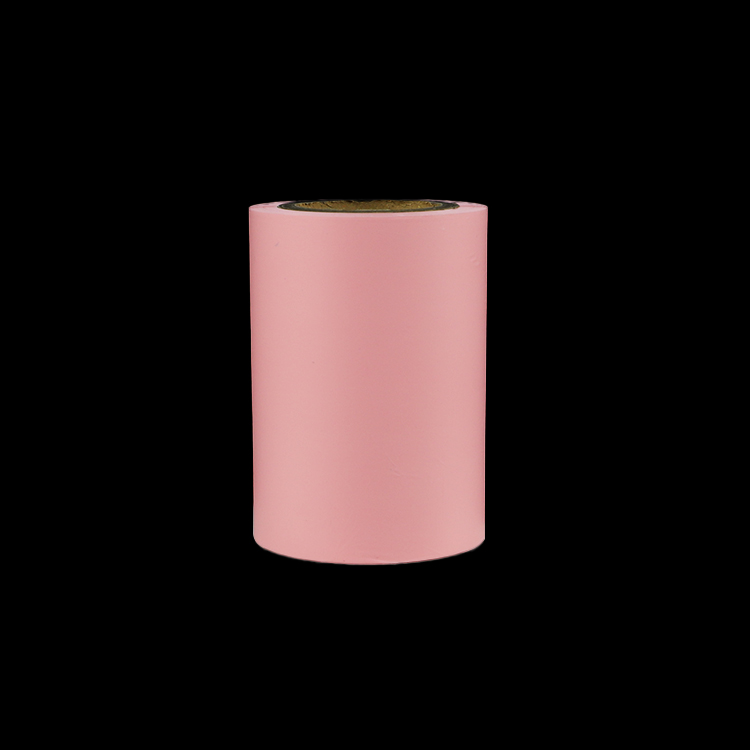

Sanitary Napkin PE Film for Wrapping Materials

Price:negotiable
Delivery time: 15-20 days after receiving deposit or LC.
Payment terms: TT/LC/DP
Application: Sanitary napkin
Minimum order quanity: 1000.00 kgs
Packing details: Paper board

Quote
+86-13599937366

Product Description

Sanitary Napkin PE Film for Wrapping features:

Composition: Polyethylene

Basic Weight: 15-35gsm

Width: 50mm-2300mm

Colors: Printing Up to 6 colors

Loading quantity:20-23 tons/20GP.

Test	Item	Technical Requirement
Appreance	Width(mm)	240mm
	(Outside Roll Diameter)mm/Length(m)	Φ450mm/5000m
	(Core Inside Diameter)mm	76mm
The Test Items		First	Second	Third	Average
Tensile Strenght	CM Tensile（N）	10.2	10.8	10.3	10.433
Tensile Strenght	MD Tensile（N）	15.5	15.7	15.3	15.5
Break Elongation rate (%)	CM Tensile(%)	398.14	395.31	397.07	396.84
Break Elongation rate (%)	MD Tensile（%）	375.54	375.56	371.02	374.04

Products Categories

Related Products

More》

Related Resource

PE film Pe film price PE film for wrapping Sanitary napkin PE film

Sanitary Napkin PE Film for Wrapping Materials Manufacturing

Prilling

Film

Formation

Printing

Slitting

Prilling

The granulation process is to grind the purchased calcium carbonate and polystyrene, and after drying and adding an adhesive, the particles having good fluidity and a particle diameter of about 0.1 mm are prepared. This process can make the final product more filling, firm and more detailed.

Film Formation

There are three steps in this process: the first step is to liquefy the raw material through a temperature of 250 degrees and shape it through cooling rolls; the second step is to preheat and then stretch and control the amount of gas permeability; the third step is to roughen the surface of the film by corona treatment, which is advantageous for ink adhesion.

Printing

Juhua's products are all produced with food-grade environmentally-friendly water-based inks and advanced and efficient flexo presses. The products produced will not have any odor at all, completely eliminating the market complaints of consumers' most sensitive diaper odor residues. The color registration is accurate. We can produce up to 6 color positioning and cutting gas permeable membranes.

Slitting

Juhua uses a high-speed stable, precise edge-cutting slitter. During the slitting, the staff confirms the quality status of each product according to the process card, rejects the abnormality, and inputs the processing result into the slitting process card to ensure that the products transferred into the package are qualified.

Sanitary Napkin PE Film for Wrapping Materials
Related Quality Control

We Formulate a Strict QC Institution

We create a quality environment for the Sanitary Napkin PE Film for Wrapping Materials. A better environment leads to systematic production of premium quality . In addition, we have set up a special laboratory for quality inspection.

Gram Weight Detection

The weight of the Backsheet of each roller will be measured by a precision electronic balance, and the weight error will be controlled at ±1.5g.

Printing Detection

The printing online defect detector detects the product printing process of each roller, and the detection accuracy of the ink dot defect is ≥0.1㎡.

Width Measurement

In the production process, the Sanitary Napkin PE Film for Wrapping Materials which is off the slitting machine will be width tested with a tape measure, and width error range should be controled in ≤ 2 mm.
